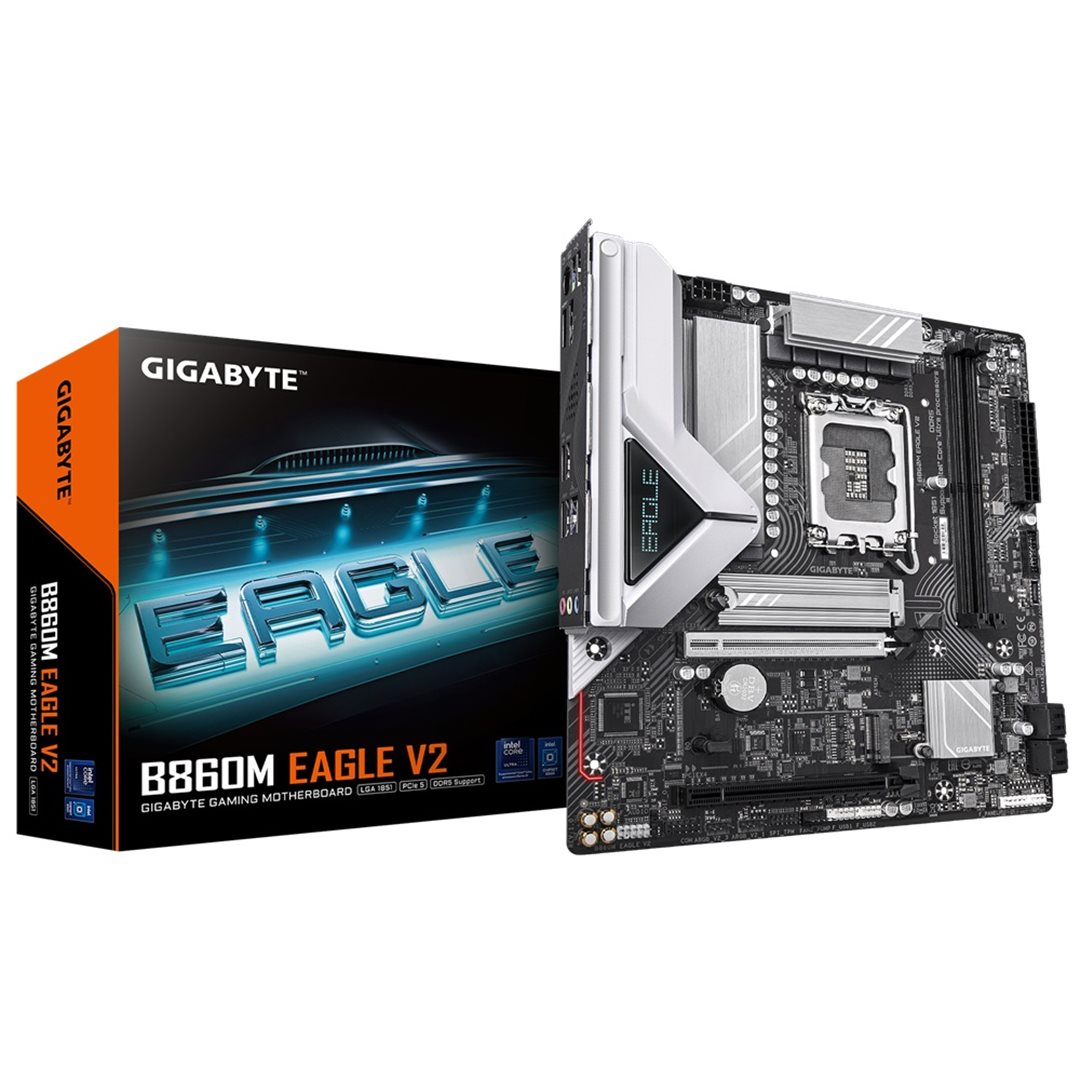

GIGABYTE B860M EAGLE V2

GIGABYTE B860M EAGLE V2

Chipset: Intel B860 Express Chipset
Rozmerový formát: Micro ATX Form Factor; 24.4cm x 22.5cm
Podpora pre procesory: Intel ® Core™ Ultra
Pätica procesora: LGA1851

Pamäť:

• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support pre ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Grafické výstupy:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version and HDCP 2.3
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 version

Zvuková karta:

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Ethernet: Realtek® 2.5 GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Rozširujúce sloty:

• 1 x PCI Express x16 slot, supporting PCIe 5.0 a bežiaci na x16 (PCIEX16) - Slot PCIEX16 môže len podporovať grafické karty alebo NVMe SSD. If only graphics card je nainštalovaný, je nainštalovaný it v PCIEX16 slot
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Úložný priestor:

• 1 x M.2 konektor (Socket 3, M kľúč, typ 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
• 1 x M.2 konektor (Socket 3, M key, typ 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
• 4 x SATA 6Gb/s konektory

RAID radič: RAID 0, RAID 1, RAID 5, a RAID 10 support for SATA storage devices

USB:

• 1 x port USB Type-C® s podporou USB 3.2 Gen 1, dostupnou prostredníctvom vnútorného USB headeru
• 5 x USB 3.2 Gen 1 ports (3 porty na back panel, 2 porty dostupný cez internal USB header)
• 3 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports dostupná cez vnútorné USB headers

Porty na zadnom paneli:

• 1 x PS/2 keyboard/mouse port
• 1 x HDMI por*
• 1 x DisplayPort*
• 3 x USB 3.2 Gen 1 ports
• 3 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

Interné porty:
Napájanie

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector

Súvisiaci s ventilátorom a chladením

• 1 x CPU fan header
• 1 x CPU ventilátor/water cooling pump header
• 1 x system fan header
• 1 x systém ventilátora/water cooling pump header

Súvisiace s úložiskom

• 2 x M.2 Socket 3 konektory
• 4 x SATA 6Gb/s konektory

USB

• 1 x USB Type-C® header, s USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers

Ostatné

• 3 x addressable RGB Gen2 LED strip headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x Trusted Platform Module pre hlavu (For GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Odkaz na stránku výrobcu: https://www.gigabyte.com/Motherboard/B860M-EAGLE-V2/sp#sp
